Mantis V1 Pro Controller Connections

Permanently deleted user

Updated November 06, 2023 19:19

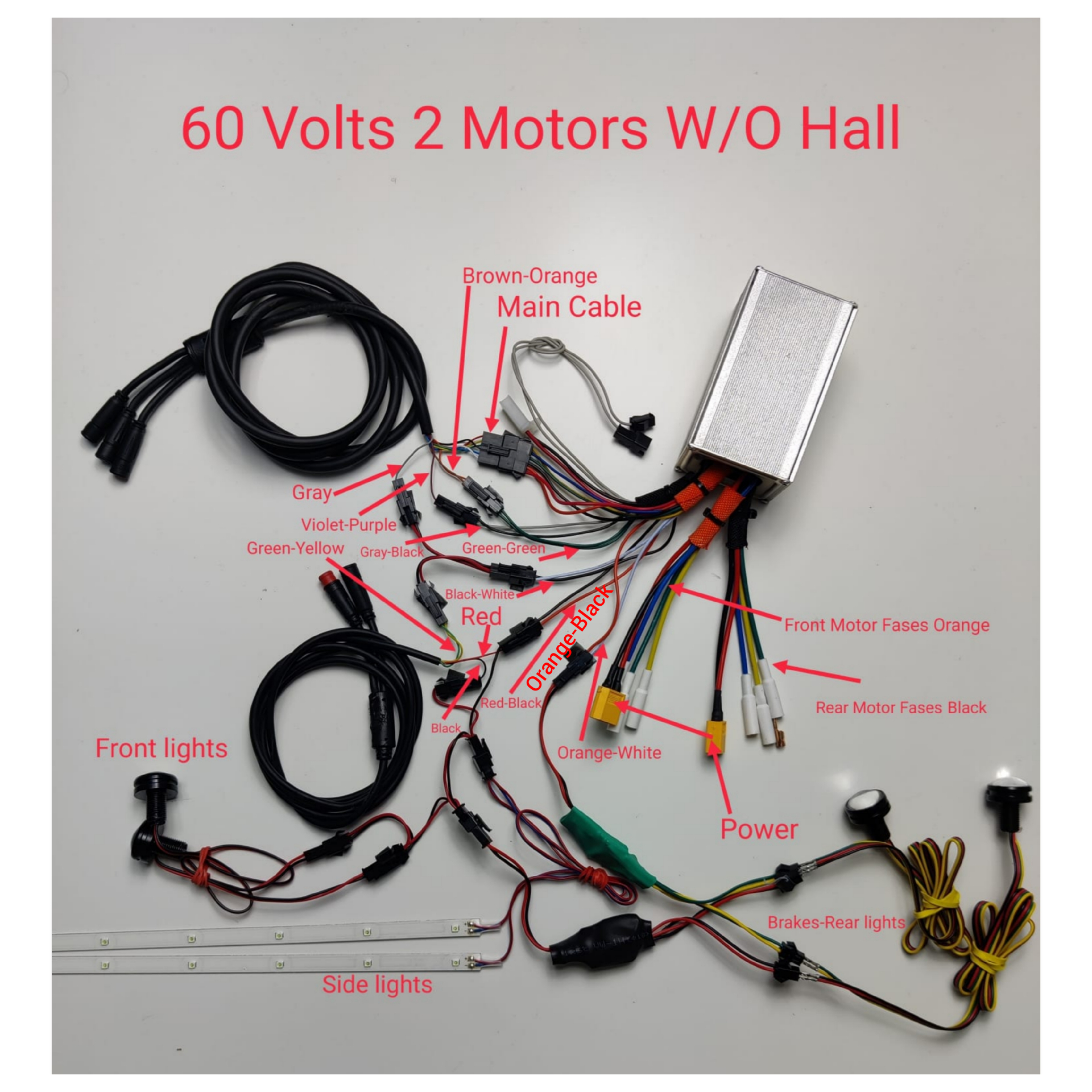

If you are replacing the controller on your Mantis Pro, please have a look at the following picture that shows all the connections from the controller:
